Description

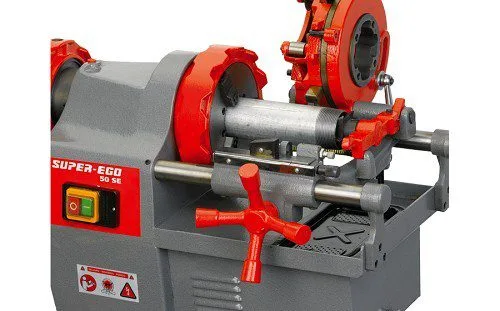

- Threading machine from 1/2” to 2” (DIN 2999 BSPT right) with a profiling-type die head.
- Compact and light.
- Suitable for the following applications related to the pipe: cutting, reamering and threading in very short
- time.
Features
- Automatic oiling through the die head onto the dies. Mechanical oil pump.

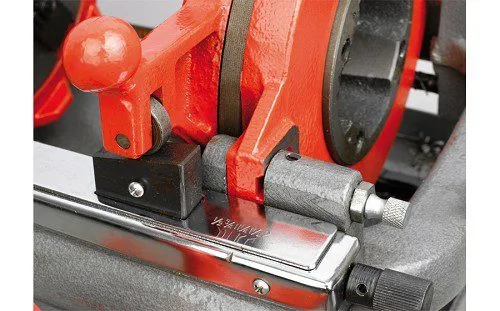

- Threading length can be regulated.
- Threading depth can be also regulated. More open or closer threads.
- Due to the profiling-type die head system dies are smaller than standard die. This means that power used to thread is less.
- Dies size: 14 x 20 mm. Two die sets: from 1/2” to 3/4” and 1” to 2”.
- 5 flute cone reamer.

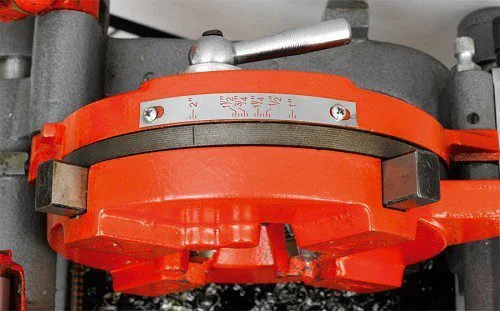

- Locking-unlocking die head system.

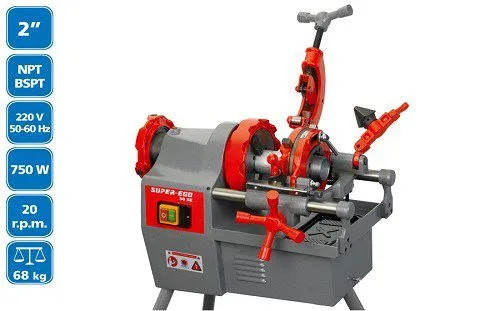

Technical data
- Induction motor 750W
- 220V-50760 Hz AC
- Silent and without maintenance. (No carbon brushes)
- 20 r.p.mm.
- 68 kg.
- Dimensions: 760 x 510 x 570 mm.
