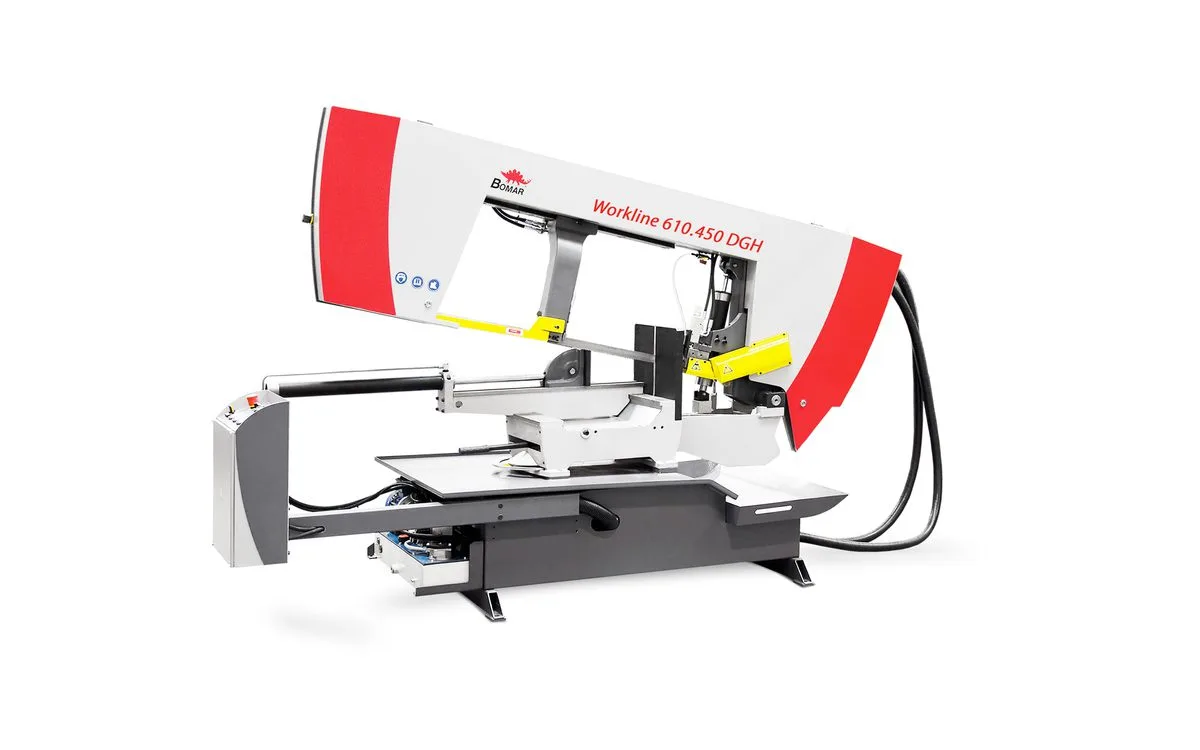

Semi-Automatic Horizontal Bandsaw
Overview
The Bomar Workline 610.450DGH is a semi-automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle, an adjustable hydraulic pressure regulation downfeed valve and variable blade speed to cope with a wide variety of cutting applications.
Standard Specification
- 2 way easy mitre cutting – 60° right, 60° left
- Easy to read mitre scale
- DRO for mitre angle
- Full stroke hydraulic vice
- Powered bow raise
- Adjustable back off valve for optimising downfeed speed relative to material mass

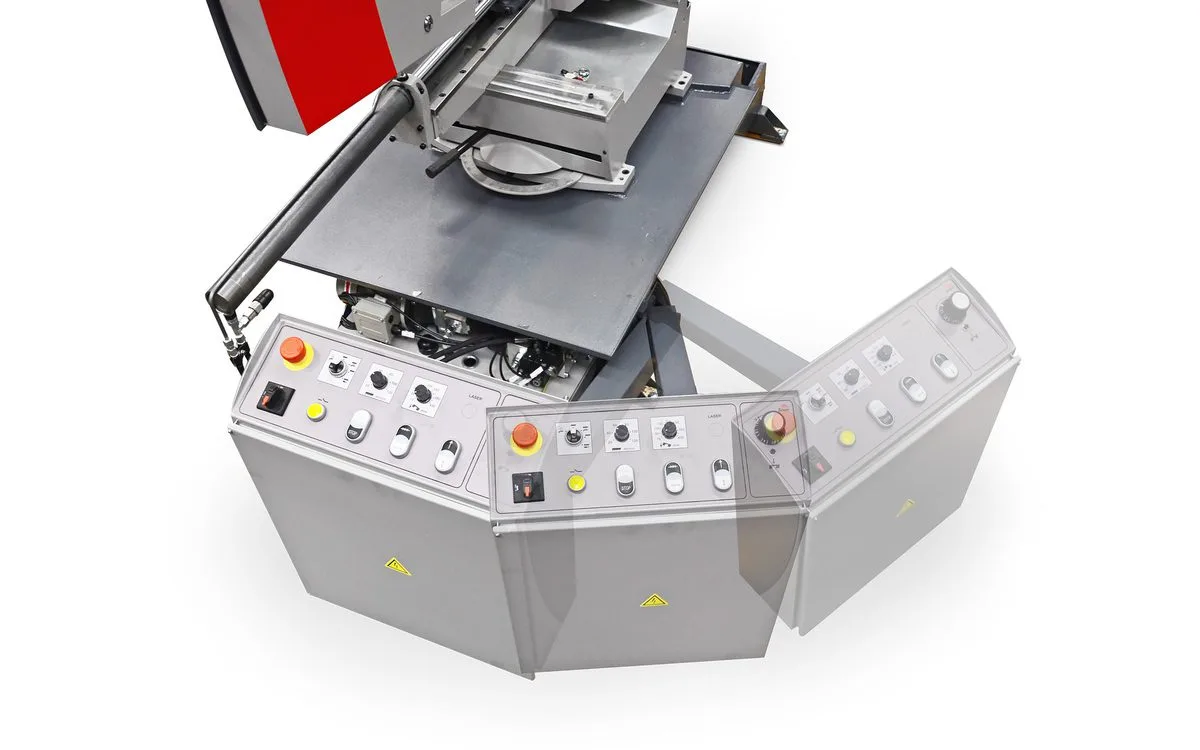

- Control box mounted on swinging arm
- Simple, robust push button controls
- Variable blade speed 20 to 120m/min

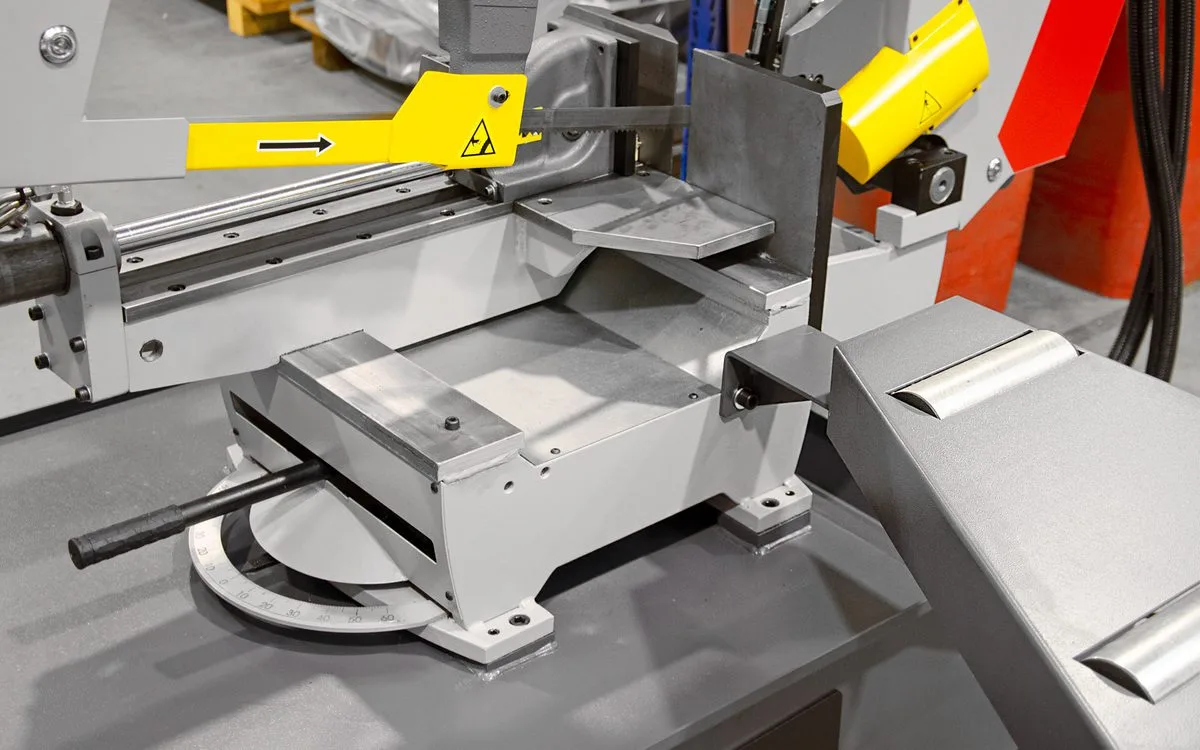

- Dovetail sliding vice for mitre cutting
- 34mm blade width
- Bed height: 781mm
BOMAR Workline 610.450DGH Technical Specifications
Manufacturer | Bomar |
Machine Type | Bandsaw |
Dimensions | 5200mm × 34mm × 1.1mm |
Table Height | 781mm |
Motor | 3kW |
Material Type(s) | Section |
Material(s) | Sections |
90° | 45° Left | 45° Right | 60° Left | 60° Right | |
Round Section (mm) | 450mm | 450mm | 450mm | 340mm | 310mm |
Rectangular Section Horizontal (mm) | 610x450mm | 500x100mm | 480x100mm | 350x100mm | 320x100mm |
Rectangular Section Vertical (mm) | 610x450mm | 380x450mm | 410x450mm | 220x450mm | 260x450mm |
Square Section (mm) | 450mm | 420mm | 420mm | 320mm | 300mm |
Solid Round 90 | 250mm | ||||
Solid Square 90 | 250mm |
This semiautomatic bandsaw is designed for both-sided mitre cuts and for cutting material up to 450 mm in diameter. The machine provides high quality at an affordable price. The excellent cutting power results from these features: a hard- metal band precision guide, an arm joint laid in slide bearings, a 34 mm high saw band, and a synchronous running brush for chips disposal. Material clamping and arm downfeed are controlled hydraulically, material feed is controlled manually.
The whole work cycle is completed at the press of the Start button: the material is clamped, the saw band starts up, cutting is carried out, the arm is raised to the default position, and the vice is opened. After switching the machine to the manual mode, all functions may be controlled separately.

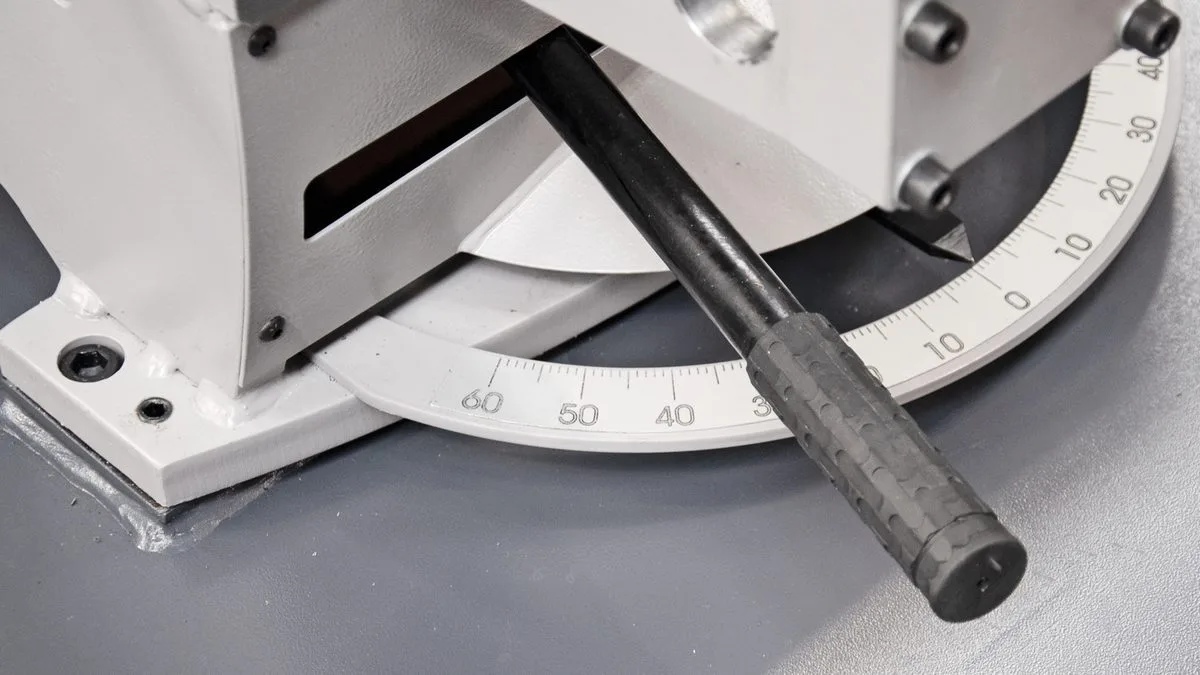

Thanks to a large angle scale located within the operator’s field of vision it is easy to set the required angle precisely. The saw band speed is set on the ergonomic control panel located in the front of the machine.
The basic equipment of the machine includes a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity.
Standard equipment of Workline automatic machines includes automatic downfeed pressure regulation dependent on the resistance of the processed material.
Key features

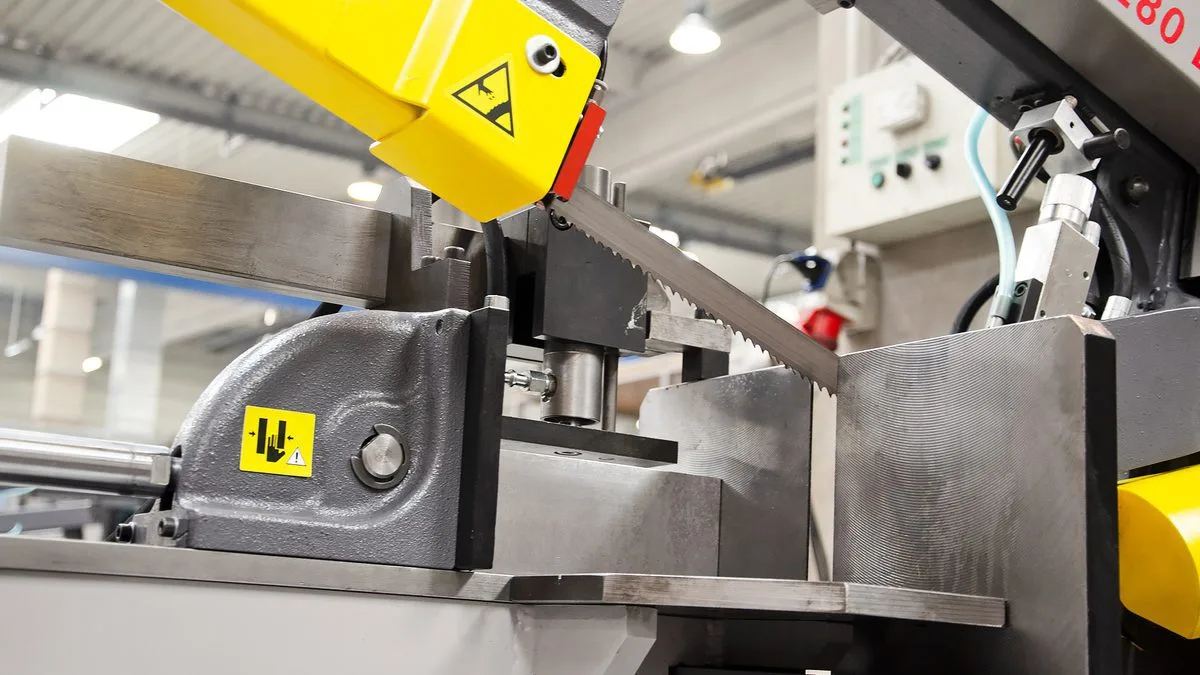

- Hardmetal saw band precision guide
- Material clamping and arm downfeed are controlled hydraulically
- Well-arranged angle scale
- Saw band cleaning brush
Cutting parameters
0° | 450 | 610×350 | 450 | |||
45°R | 450 | 480×100 | 420 | |||
45°L | 450 | 500×100 | 420 | |||
60°R | 310 | 320×100 | 300 | |||
60°L | 340 | 350×100 | 320 |
Technical specification
Working mode: | semiautomatic |
Machine type: | Horizontal bandsaw |
Cut: | Mitre cut |
Mitre cuts range: | -60° to +60° |
Drive: | 3 kW, 3×400 V/50 Hz |
Saw band speed: | 20 – 120 m/min. |
Saw band dimensions: | 5 200x34x1,1 mm |
Material loading height: | 781 mm |
Shortest remnant length: | 60 mm |
Machine dimensions
Length: | 2 781 mm |
Width: | 1 443 mm |
Height: | 1 564 mm |
Weight: | 800 kg |
