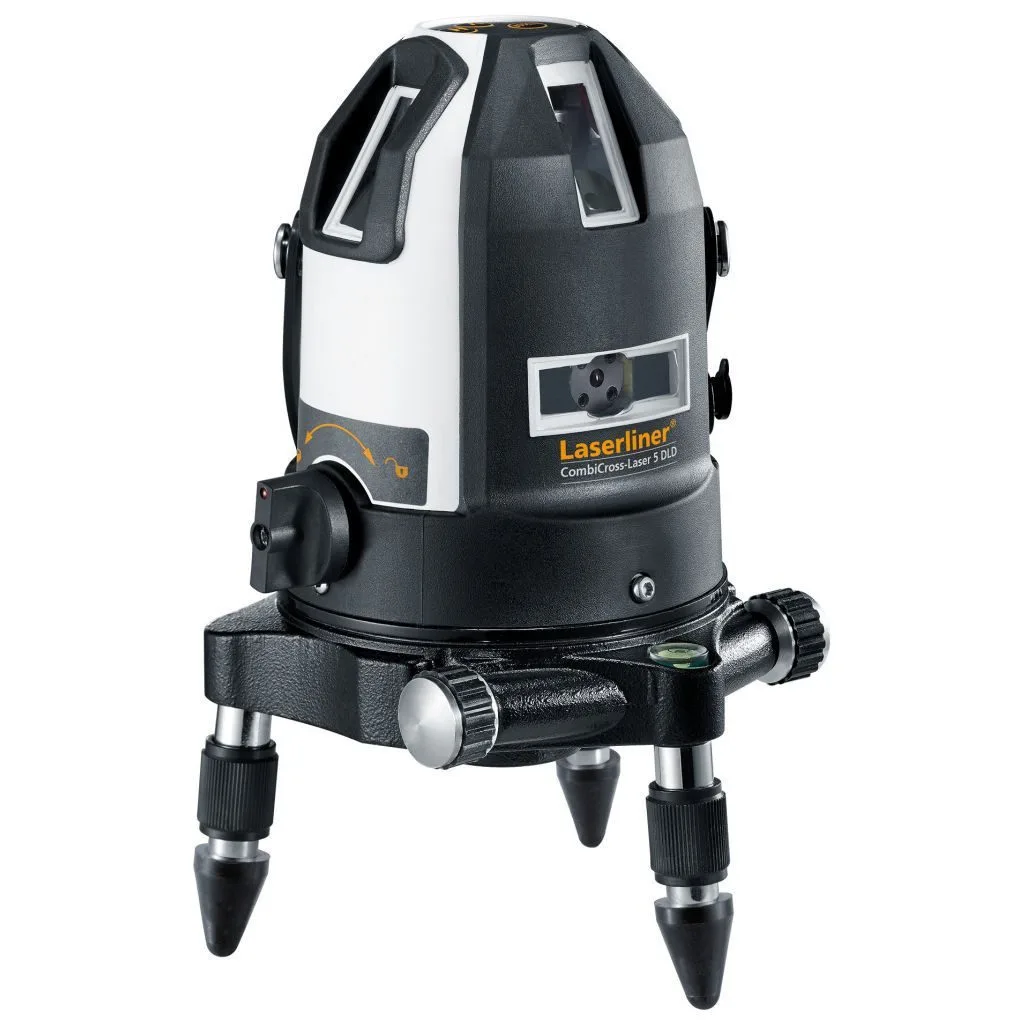

CombiCross-Laser 5 DLD – 057.200L

• Green laser technology
• Extremely bright green laser cross at front in the DLD design achieves high-quality linesas well as a clean and clear and therefore easily visible line image.
• PowerBright-Laser: Special high-performance laser diodes project extremely visible laser lines.

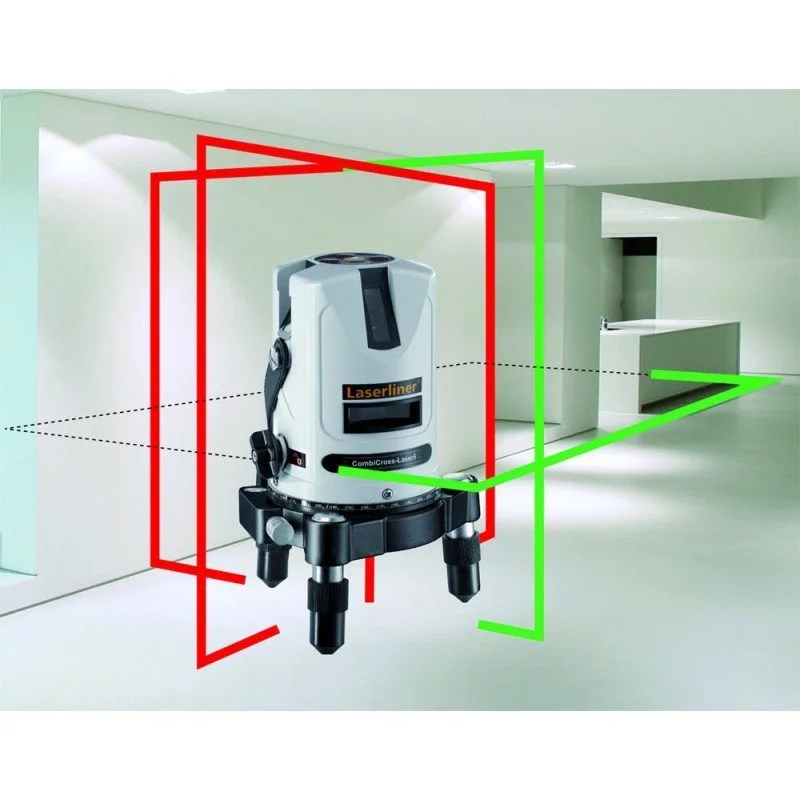

• The 4 vertical lines are aligned at right angles to one another.
• Automatic Level: automatic alignment by virtue of a magnetic pendulum system.
• A simple, precise plumb function is afforded by the additional plumb laser at the bottom and the laser cross at the top.
• Out-Of-Level: is indicated by optical signals when the unit is outside its self-levelling range.
• Connectible laser lines.
• RX-/GRX-Ready: Together with an optional laser receiver, the integrated hand-held receiver modes permit detection of the red laser lines (RX-Ready) and green laser lines (GRX-Ready) over long distances and under unfavourable light conditions.
• The pivoted housing can be turned with a vernier adjustment mechanism to permit exact positioning of laser lines.
• Vial and height-adjustable feet for preliminary adjustment of the unit.
• Mains operation possible using additional mains unit.
• Transport lock: A pendelum lock protects unit during transport.

Product code: 057.200L
