מד עומק דיגיטלי מוחלט (אבסולוטי) 0-200 מ”מ פסיעה 0.01 מ”מ סטייה +/-0.02 מ”מ

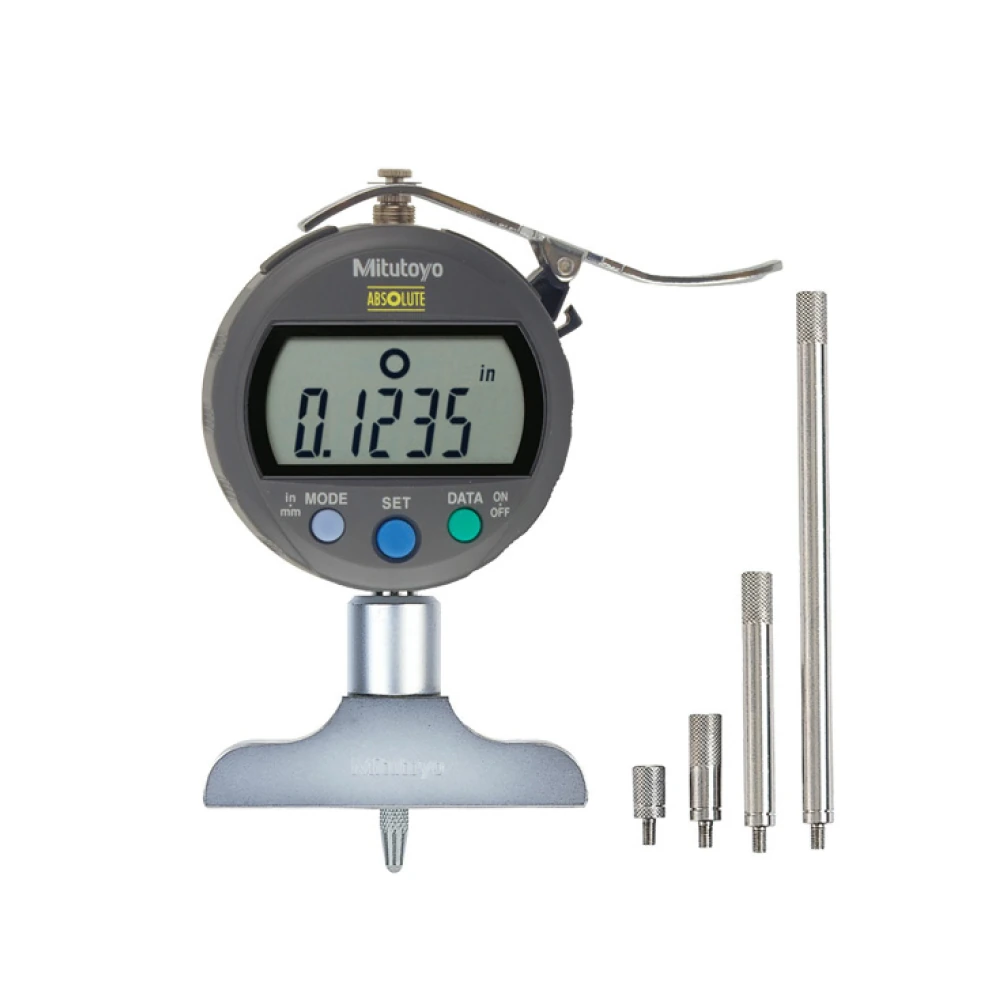

This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:
It is equipped with the ABSOLUTE Digimatic Indicator ID-C.
It has a hardened, precision ground and micro-lapped reference face on its base.
Range: 0 – 200 mm
Digital step:10 µm
PRESET:Yes
Power supply:1 battery SR-44
Stroke:12.7 mm
Accuracy:± 20 µm
Base flatness:5 µm
Lock function:Yes
Scale:Capacitance type ABSOLUTE linear encoder
Alarm:Low voltage, counting value composition error, overflow error, tolerance limit setting error
Battery life:Approx. 7000 hours
Digimatic data output:Yes
ABS / INC (INC ZERO):Yes
DATA (output with cable) / HOLD (display value):
Yes
Counting direction switchable:
Yes
Mass:290 g
Measuring force:≤ 1.5 N
Contact point:
Carbide ball
GO/±NG judgement:Yes
Calculation function (with formula):Yes
זמן אספקה: | עד 6 ימי עסקים |
יצרן: | Mitutoyo |
דגם: | 547-211A |
ברקוד: | 10205500001 |
אחריות: | אחריות לשנה |
מספר מכירה: | 102055 |
