מכונת הברגות עד “4 – עטוף עד “3.5

Name: מכונת הברגות עד "4 - עטוף עד "3.5
Brand: RIDGID
SKU: 76227
Availability: PreOrder

₪46,990.00

לקבלת הצעת מחיר התקשר 04-8722556!

שלח הודעת ווטסאפ

ניתן להזמנה מראש

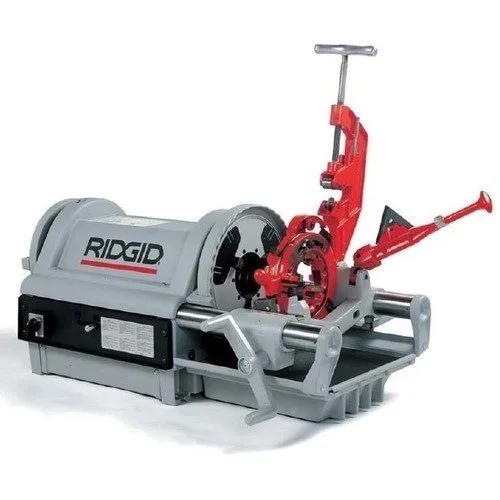

	Threads 1/4″-2″ pipe at 36 RPM and 2 1/2″-4″ at 12 RPM.
	The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
	An induction motor insures sound levels well within the limits set by the regulating authorities.
	A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
	1/4″-2″ Universal Die Head; 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
	Constant and proper lubrication of dies and workpiece with through-head oiling.

Specifications

	Pipe Capacity:	1/4″-4″ (6mm-100mm) 4″-6″ (100mm-150mm) with 161 Geared Threader.
	Bolt Capacity:	1/4″-2″ (6mm-50mm).
	Motor:	1 1/2 HP, single-phase, 60 Hz or 50 Hz, induction type.
	Motor Control:	Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch.
	Spindle Speed:	36/12 RPM.
	Gear Box:	Two-speed gear box 3:1 ratio.
	Chuck:	Hammer-type with replaceable rocker-action jaw inserts.
	Rear Centering Device:	Cam action.
	Cutter:	Model 764 full-floating, self-centering 1/4″-4″ with F-229 cutter wheel.
	Reamer:	Model 744, 1/4″-4″ blade-type.
	Oiling:
	Pump:	Self-priming, gerotor-type, automatic-reversing, constant-fl ow.

Standard Equipment

Model No. 1224 threading machine with foot switch.

	One No. 714 (914) 2 1/2″- 4″ receding self-opening die head.
	One No. 711 (911) 1/4″- 2″ universal self-opening die head.
	One set 1/2″- 3/4″ universal alloy dies.
	One set 1″ – 2″ universal alloy dies.
	One set 2 1/2″- 4″ 1224 high-speed dies.
	One No. 764 cutter.
	One No. 744 reamer.
	One spare F-229 cutter wheel.
	One gallon Nu-Clear oil.
	Three hex keys.
	One 3/4″ combination wrench.
	One tool box.
