מכשיר חיבור דיבלים עץ 900w הטייה 0-90° עד 40 מ”מ עומק, קוטר 3-12.2 מ”מ 8000 סל”ד

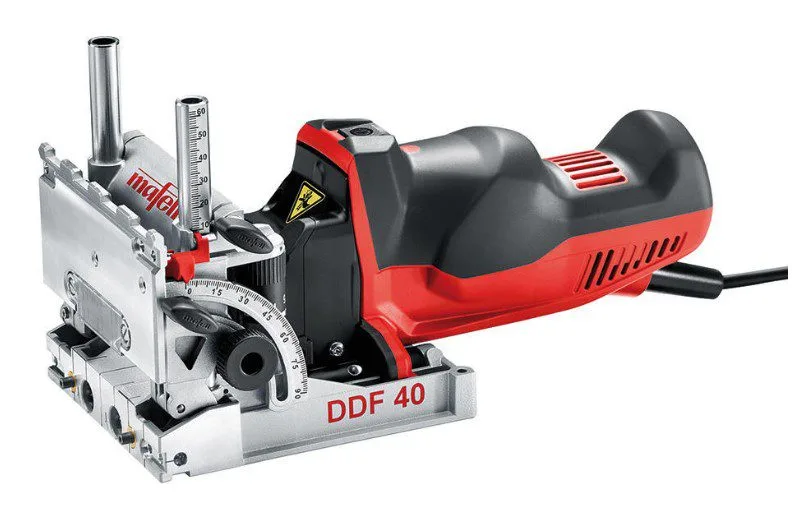

The DuoDoweler DDF 40 introduces greater ease and efficiency to the task of drilling accurate dowel holes. Its hallmarks are a broad range of applications, a new ergonomic design for easy handling, and absolutely aligned, stable joints. Whether in the workshop or on site, no other hand-held power tool can produce such high-quality joints.
When producing corner joints, partitions or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with standard wooden dowels.In addition, the technique of using dowels in pairs already achieves outstanding stability at the dry assembly stage.
Smart accessories make the DuoDoweler DDF 40 a convenient multi-purpose machine. Thanks to the variety of stops/fences, for example, in most cases you do not need to use a template or mark out the work.
Advantages:

• The DDF 40 is a slimline machine with a flat baseplate. It produces practical dowel joints with the ease of handling associated with conventional jointers.

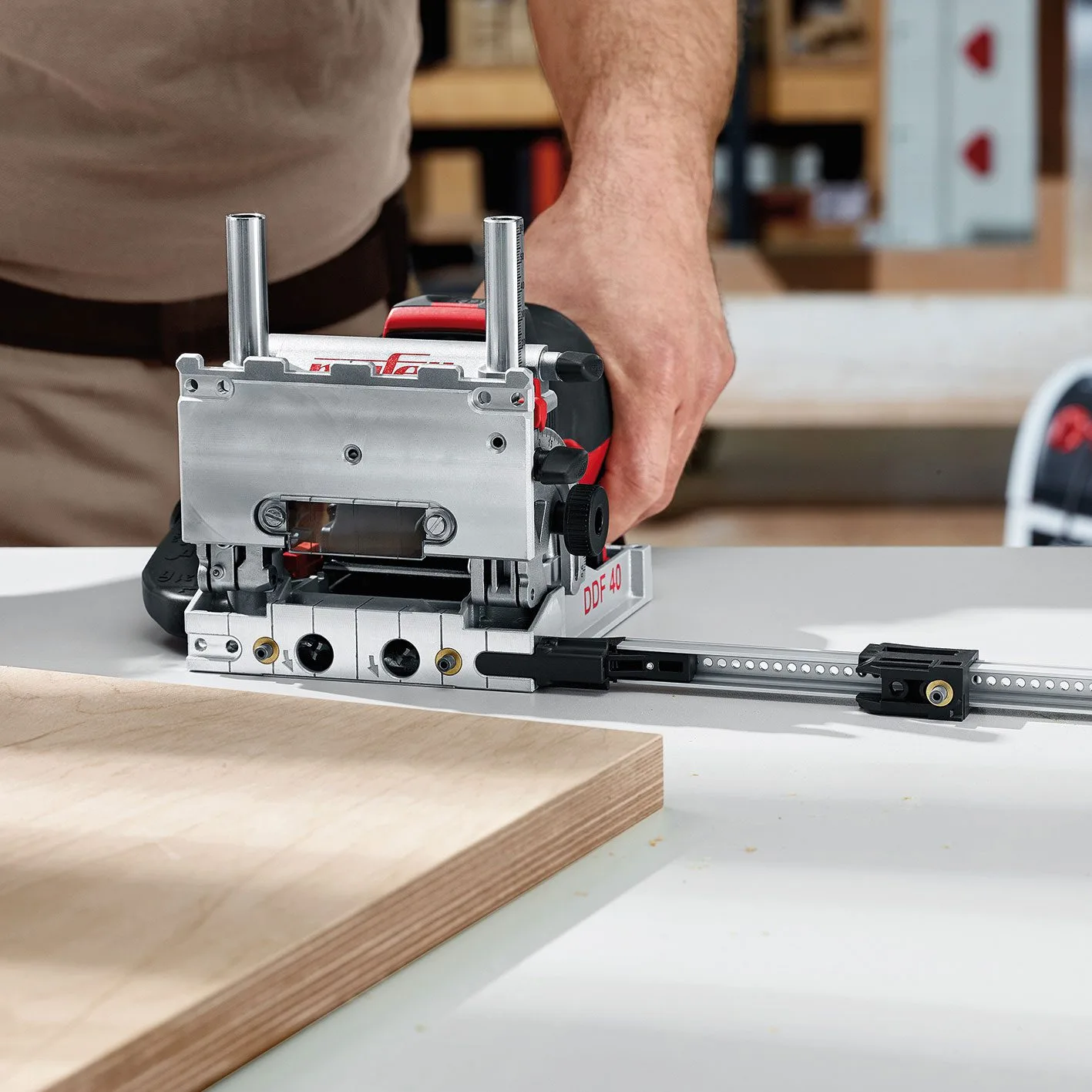

• The patented alignment system with spring-loaded stop pins in the baseplate has simply been adapted for the new side fence set SA 320. It allows pairs of holes to be drilled a long distance from the reference edge, and repeated, very easily without any need for marking.
• A distance of 32 mm between hole centres is an everyday standard for professionals. While other jointing systems always call for additional tooling, the DDF 40 also enables users to produce rows of holes, and holes for hardware, with a spacing of 32 mm. Entire furniture items are therefore easy to assemble.

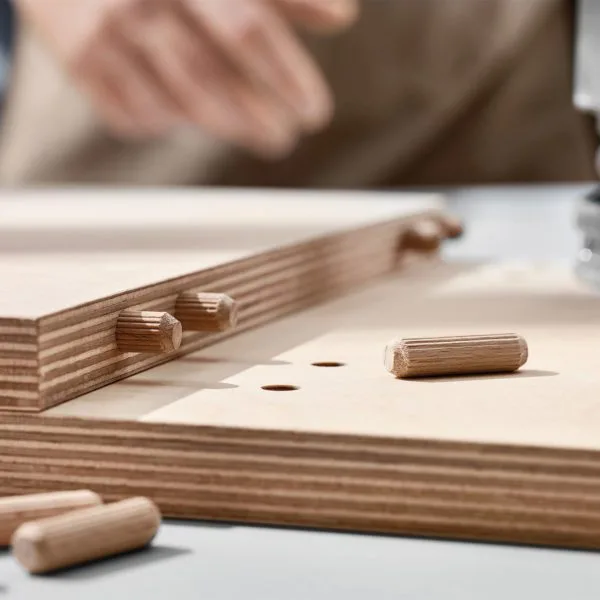

• The proven technique of using dowels in pairs rules out the risk of any twisting movement between the two pieces once they are jointed. It also holds the pieces in alignment.
• The rotary knob and scale allow the tilting fence to be accurately repositioned up to a height of 62 mm. Regularly occurring dimensions can be preset by way of the turret.
• The ergonomic motor housing, with a molded grip at the front and a hump at the rear, gives the operator a perfect hold no matter what the job, while ensuring the ideal transmission of force to the machine.
• Two depth stops allow to set two drilling depths. They are preselected via a rotary knob. In addition, the rotary knob offers a setting for tool change, which automatically blocks the on-switch.

Application:

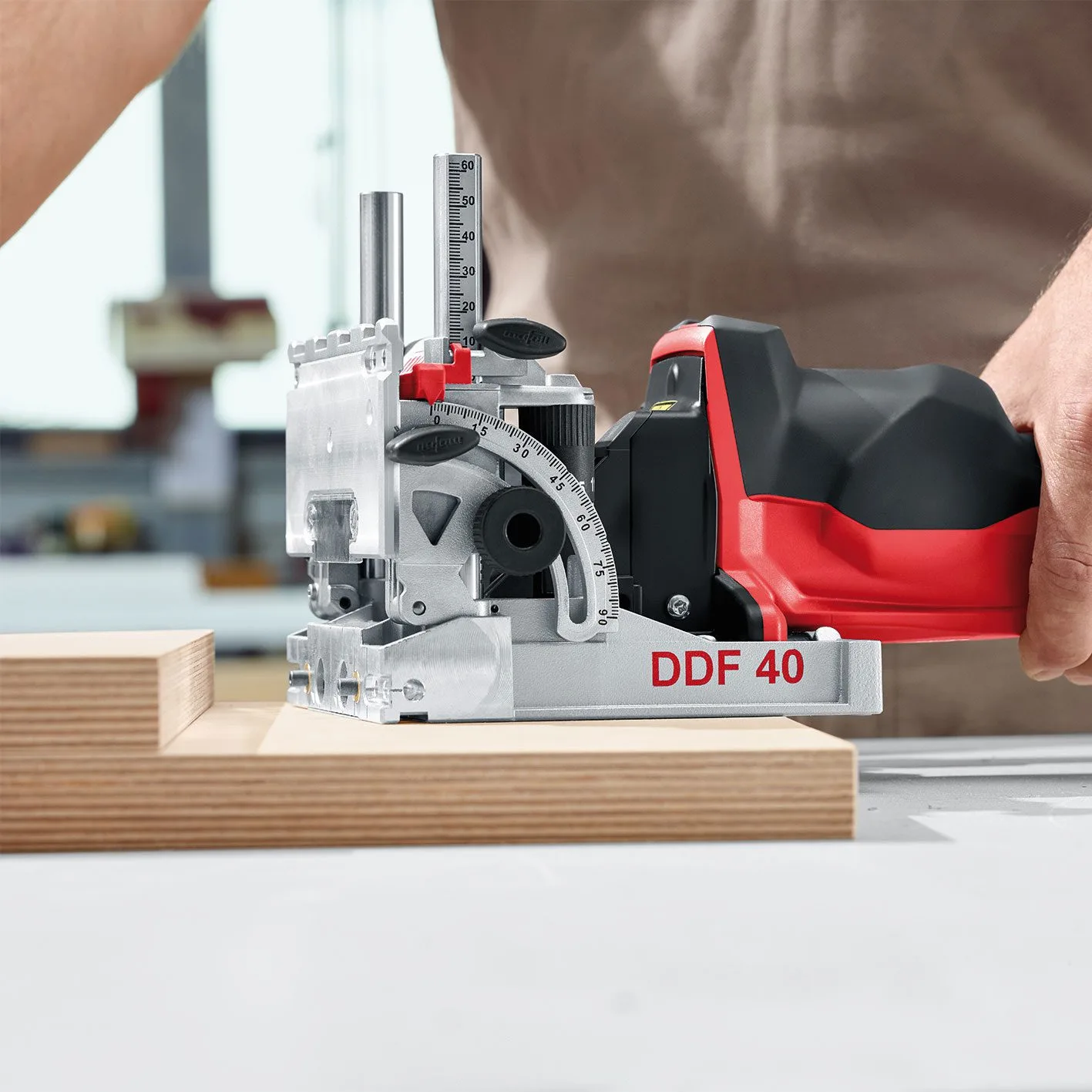

• Corner joint:The lateral distance is determined by the spring-loaded stop pins. The DDF 40 is placed horizontally on workpiece A and vertically on workpiece B for drilling the hole pairs.
• Partition/Shelf: The partition/shelf is clamped to the cabinet wall as a stop edge. Use the spring-loaded stop pin to move the hole pairs: first left, then right – first vertically, then horizontally.
• Row of holes: Adjust the drilling height via the tilting stop. Then insert the additional stop, determine the position and drill. Additional holes can be drilled as required.
