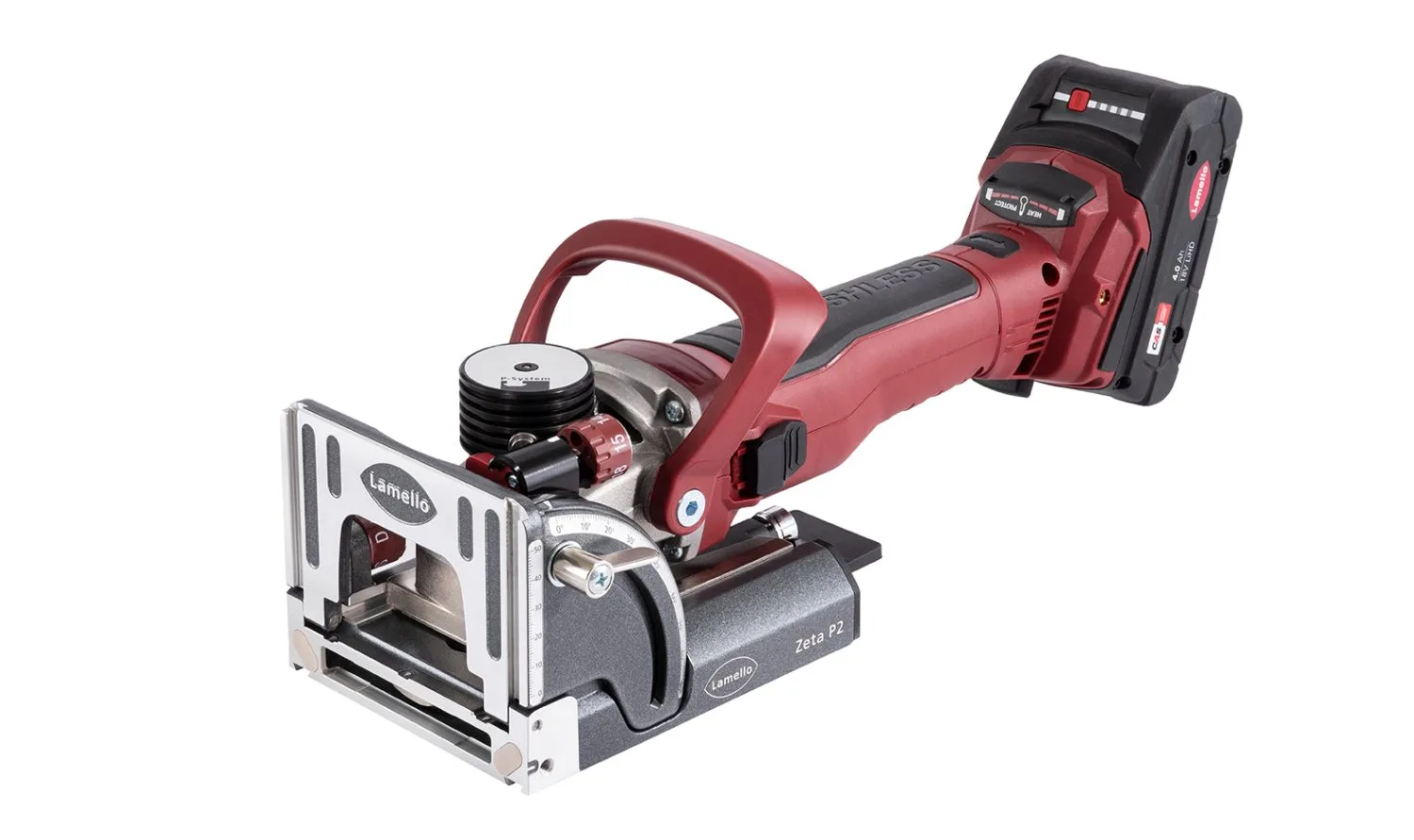

Zeta P2



The Zeta P2 is the profile biscuit joiner for P-System anchorage, and the Clamex P connector range in particular, and is used to connect wood materials.

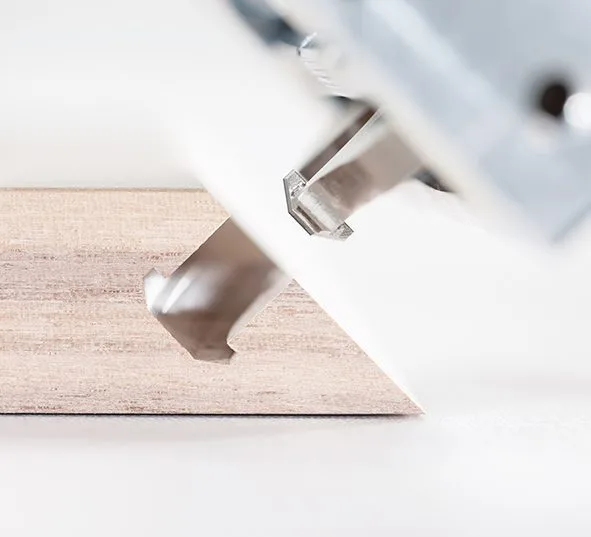

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centre-piece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.





The Zeta P2 can cut P-System grooves for connecting fittings with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.





Function



The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process security and reliability with a low-wear, fully mechanical construction.

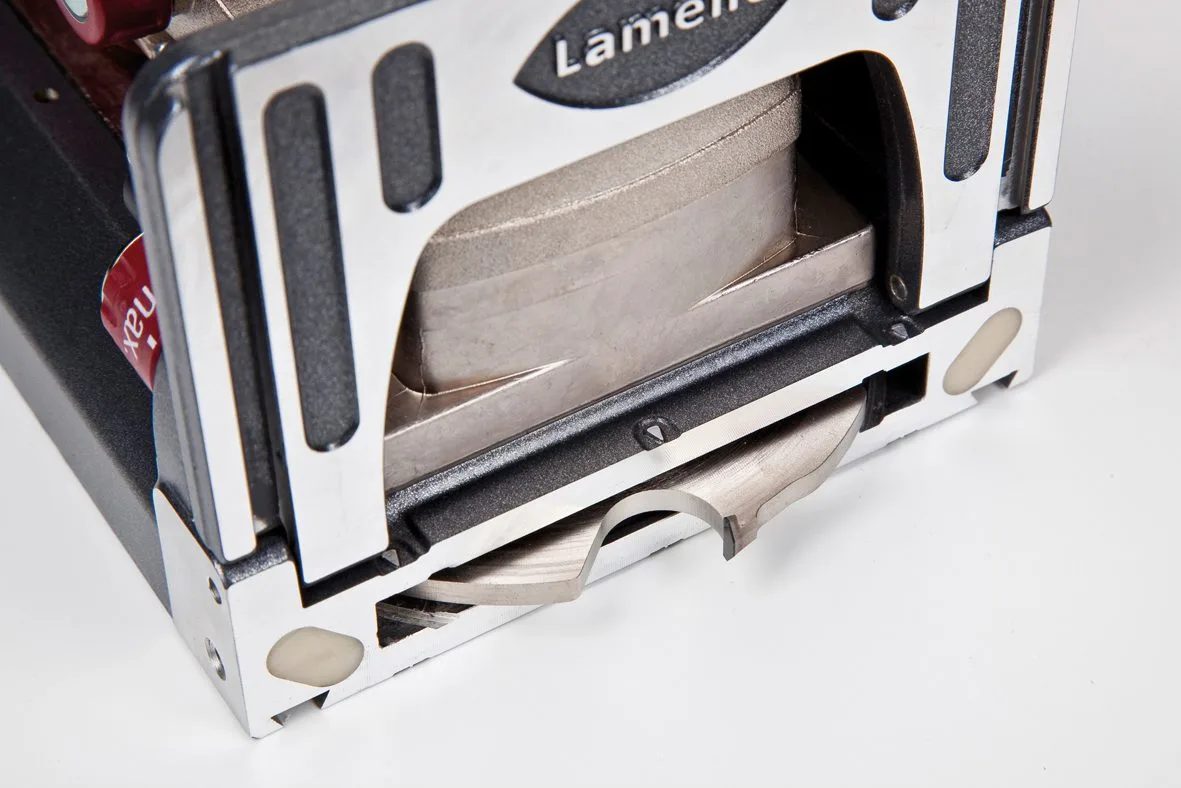

The Zeta P2 can also be employed as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.





Benefits

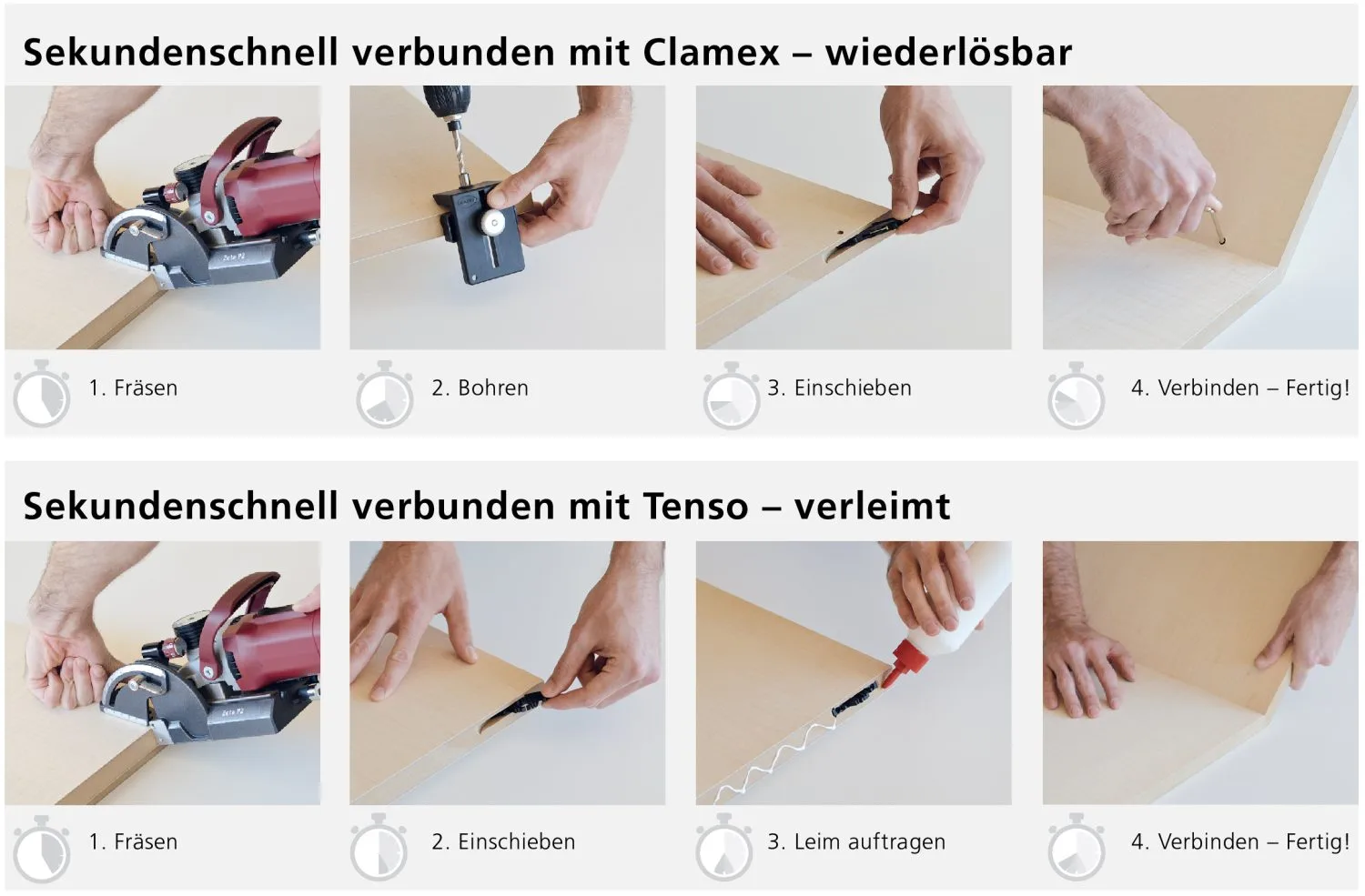

• Extremely fast joining method using a power tool
• Rapid, simple and precise working in the familiar manner like with Lamello biscuit joiners
• Identical grooves on both work pieces, saving time by removing the need for depth adjustments and minimising the risk of errors
• Fitting installation with innovative profile groove technology greatly reduces labour time while also negating the need for additional fastening materials
• 5 different cutting depths for various connecting fittings
• Also compatible with biscuits and other 4 mm fittings

Applications

• Ideal for wood shops without stationary equipment for connecting fittings

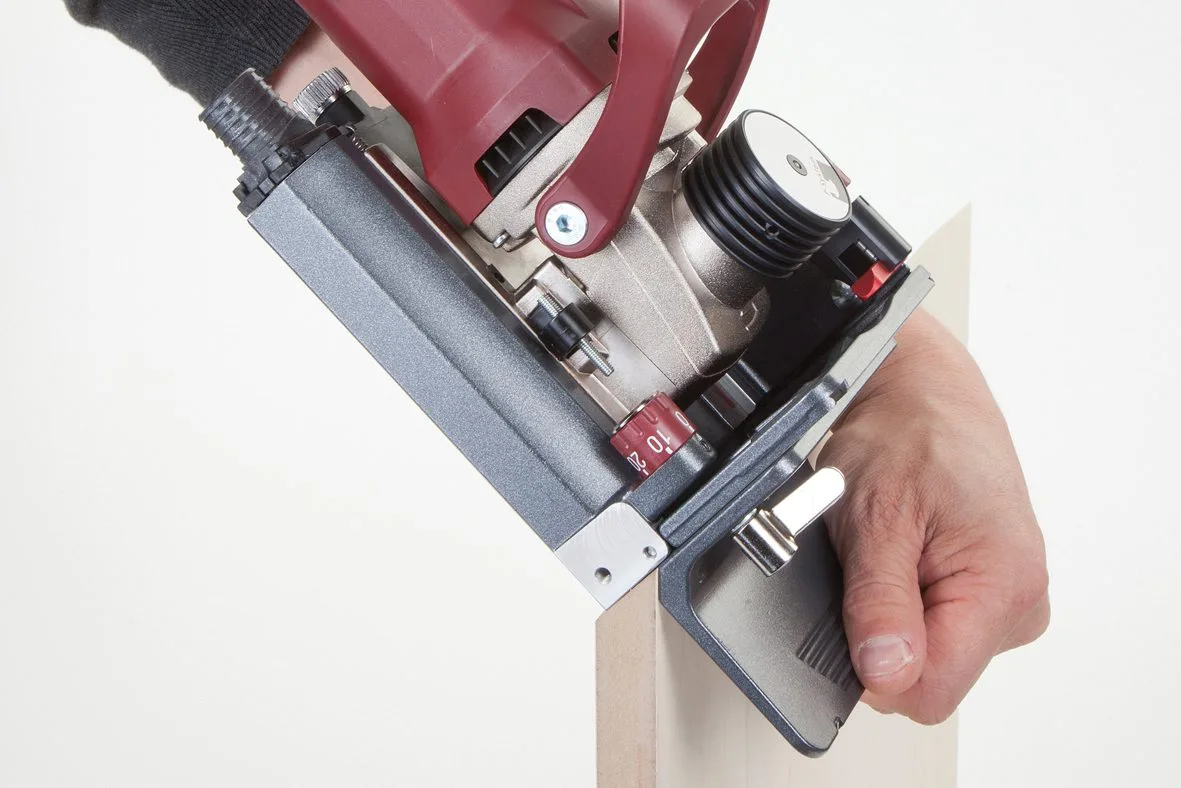

• Rapid glueing aid for a wide range of angle joints
• Production of objects with varying angles in minimal setup time
• Rapid prototype construction by companies using CNC machines
• On-site adjustments and assembly
• All wood materials and panels as well as composite materials such as solid surfaces or HPL
