Cylinder displacement | 37.7 cc |
---|---|
Power output | 2.4 hp |
Maximum power speed | 10200 rpm |
Fuel tank volume | 11.5 fl oz |
Fuel consumption | 464 g/kWh |
Idling speed | 3000 rpm |
Spark plug | NGK CMR6H |
Electrode gap | 0.02 “ |
Torque, max. | 1.79 Nm/9000 rpm |
Oil tank volume | 0.42 US pint |
---|---|
Oil pump type | Adjustable flow |
Equivalent vibration level (ahv, eq) front / rear handle | 3.1/3.2 m/s² |
---|---|
Sound pressure level at operators ear | 104 dB(A) |
Sound power level, guaranteed (LWA) | 116 dB(A) |
Chain pitch
|
3/8″ |
---|---|
Recommended bar length, min-max | 12″-16″ |
Chain speed at max power | 63.65 fts |
Chain speed at 133% of maximum engine power speed | 84.65 fts |
Chain gauge | 0.05 “ |
Weight (excl. cutting equipment) | 8.6 lbs |
---|
-
AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburetor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.
-
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
-
The top handle grip size can be set in three alternative sizes, to perfectly fit your hand.
-

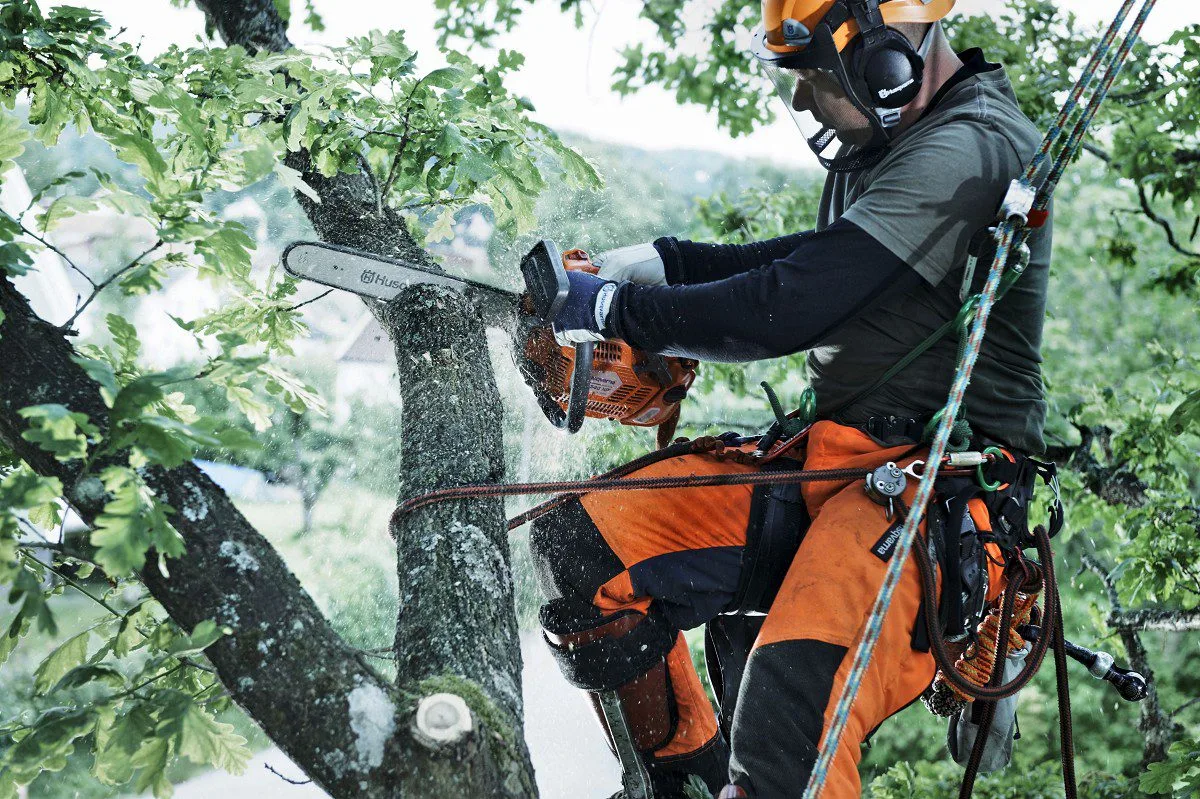

Makes it quick and easy to connect the saw to the climbing harness.
-
The light and strong TechLite™ bar makes the saw easier to manouvre. This bar is up to 18 % lighter compared to a conventional bar.
-
Stop switch automatically resets to the ON position for easier starting.
-
Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.
-
System designed to reduce vibration levels to the operator, which lessens fatigue.
