מצלמה תרמית IR resolution 256×192 רגישות 50mk ל 550°~20°-

Name: מצלמה תרמית IR resolution 256×192 רגישות 50mk ל 550°~20°-
Brand: UNI-T
SKU: 115091
Availability: InStock

₪3,099.00

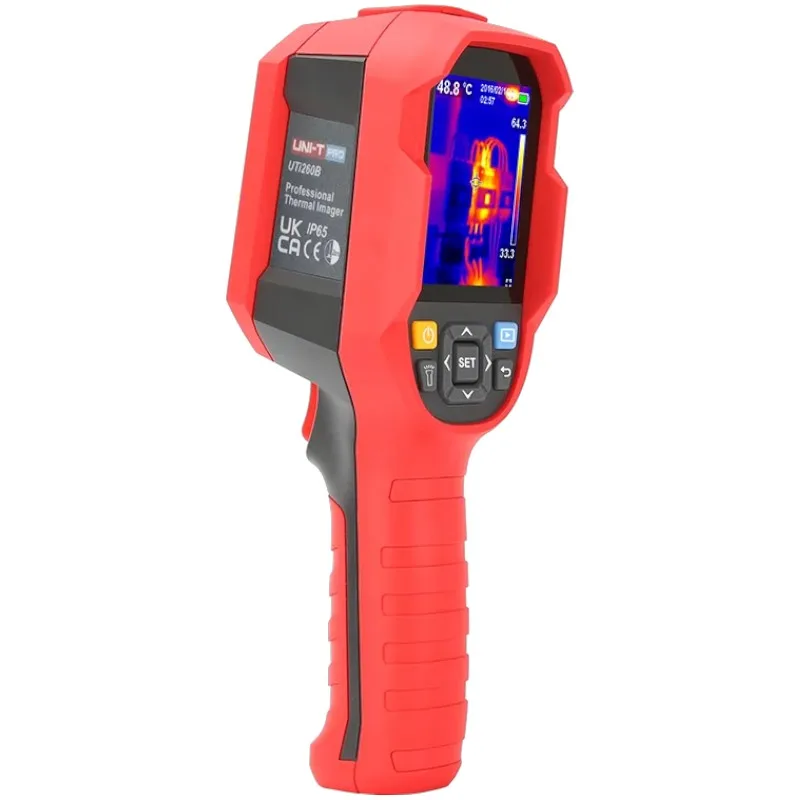

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test

שלח הודעת ווטסאפ

במלאי

הדפסה

דמי משלוח:	₪39.00
זמן אספקה:	עד 6 ימי עסקים
יצרן:	UNI-T
דגם:	UTi260B
ברקוד:	6935750526149
אחריות:	אחריות לשנה
מספר מכירה:	115091

IR resolution (Pixels)	256×192
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	56°×42°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	3 Points
Digital camera resolution	640×480
Hi/Lo temperature alarm	Icon,LED flashlight
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥ 6 hours
USB	Type-C
IP rating	IP65
Drop proof	2m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC,RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
Standard individual packing	Gift box
Standard Qty per carton	10
Standard carton size	500mm×315mm×295mm
Standard carton G.W.	10.1kg
