מצלמה תרמית 1024×768 45° מקצועי 72501-0101

Name: מצלמה תרמית 1024x768 45° מקצועי 72501-0101
Brand: FLIR
SKU: 92218
Availability: PreOrder

₪181,640.00

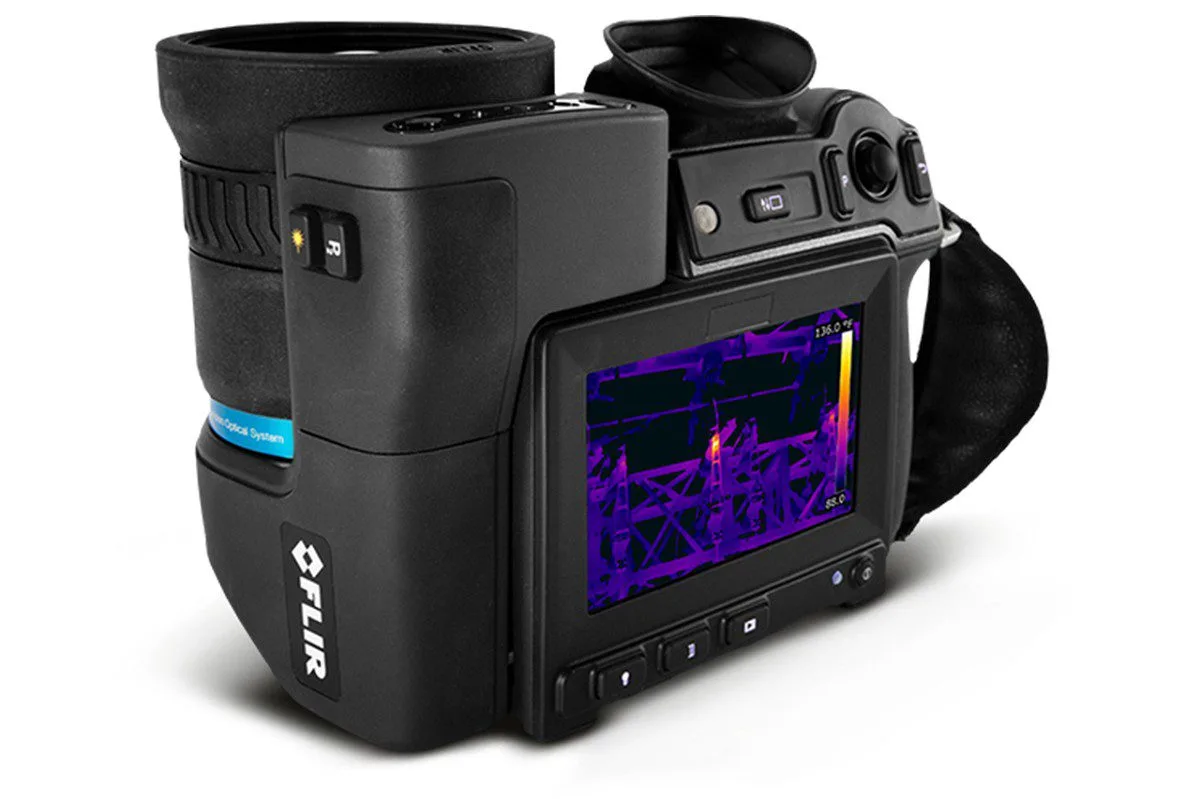

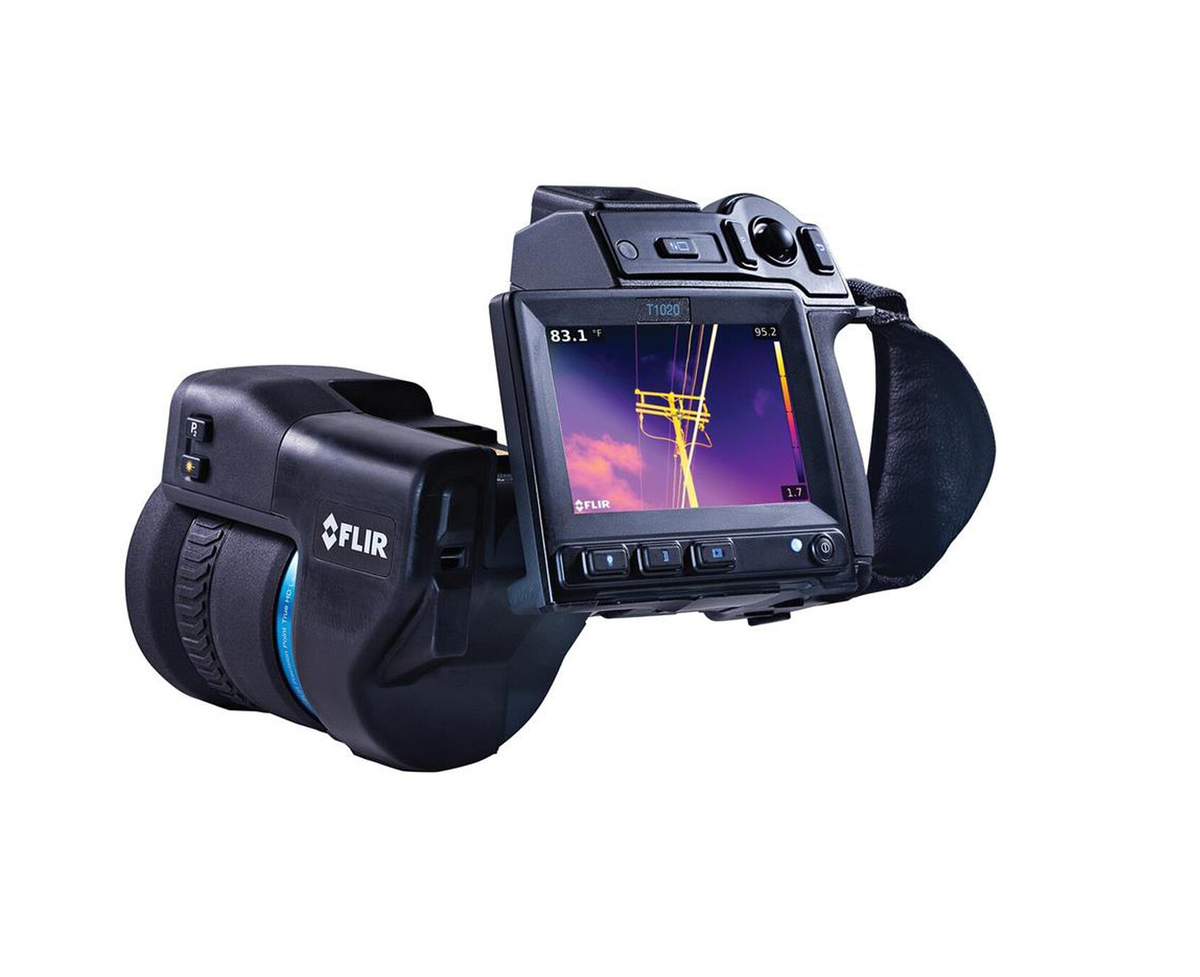

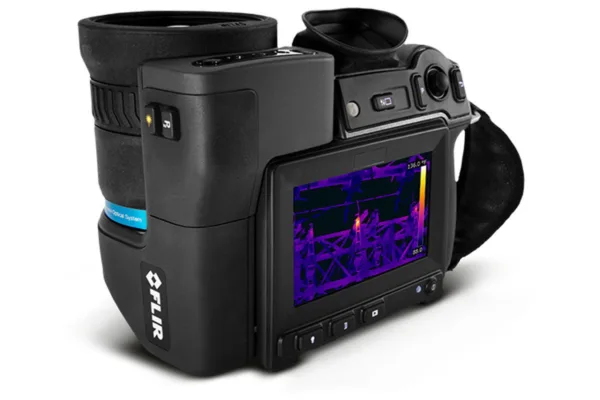

FLIR T1020 IR Camera 1024 x 768 Resolution/30Hz w/12° Lens – 72501-0101

שלח הודעת ווטסאפ

ניתן להזמנה מראש

הדפסה

דמי משלוח:	₪189.00
זמן אספקה:	עד 6 ימי עסקים
יצרן:	FLIR
דגם:	T1020
מק״ט:	72501-0101
ברקוד:	00528900001
מספר מכירה:	92218

Image and Optical Data
IR Resolution	1024 x 768 (786,432 pixels)
UltraMax®	3.14 Mpixels
Field of View	12 x 9° (83 mm lens)
F-number	f/1.2
Lens Identification	Automatic
Image Frequency	30 Hz
Focus	One-shot, manual
Digital Zoom	1-8x continuous
Detector Data
Detector Type and Pitch	Uncooled microbolometer, 17 μm
Spectral Range	7.5 to 14 μm
Thermal Sensitivity/NETD	<20 mK at 86°F (30°C)
Image Presentation and Modes
Display	4.3″, 800 x 480 pixel capacitive touch screen with auto-orientation
Viewfinder	Built-in, 800 x 480 pixels
Digital Camera	5 MP with built-in LED
Color Palettes	Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Image Modes	Infrared, visual, MSX, Picture-in-picture
Picture-in-Picture	Resizable and movable
Time-Lapse (Infrared)	15 sec to 24 hrs
Measurement and Analysis
Object Temperature Range	-40 to 302°F (-40 to 150°C) 32 to 1200°F (0 to 650°C) 572 to 3632°F (300 to 2000°C)
Accuracy	±1.8°F (±1°C) or ±1% at 77°F (25°C) for temperatures from 41 to 302°F (5 to 150°C)
Alarms	Above, below, interval, moisture, insulation
Measurement Function Alarm	Audible/visible above/below alarms on any selected measurement function
Compass, GPS	Yes; automatic GPS image tagging
METERLiNK®	Yes; several readings
Measurement Presets	No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Spotmeter	10
Area	5 + 5 areas (boxes and circles) with max/min/avg
Laser Pointer	Dedicated button
Data Storage and Streaming
Storage Media	Removable SD card
Image File Format	Standard JPEG with measurement data included
Radiometric IR Video Recording	Real-time radiometric recording (.csq)
Non-Radiometric IR or Visual Video	H.264 to memory card
Radiometric IR Video Streaming	Yes, over USB
Non-Radiometric IR Video Streaming	H.264 over Wi-Fi or USB
Video Out	HDMI 640 x 480, HDMI 1280 x 720, DVI 640 x 480, DVI 800 x 600 additional data battery type
Battery	Type: Rechargeable Li-ion battery Operating time: Approximately 2.5 hours at 77°F (25°C) ambient temperature and typical use
Operating Temperature Range	5 to 122°F (-15 to 50°C)
Storage Temperature Range	-40 to 158°F (-40 to 70°C)
Shock/Vibration/Encapsulation/Safety	25 g/IEC 60068-2-29, 2 g/IEC 60068-2-6, IP 54/IEC 60529; EN/UL/CSA/PSE 60950-1
Tripod Mounting	UNC ¼”-20
Dimensions	6.6 x 8.0 x 7.4″ (16.7 x 20.5 x 18.8 cm)
Weight	4.6 lbs (2.1 kg)
