משאבת סחרור מים חמים חד פאזי אורך 180 מ”מ 11 מ’ 361w-410w תוצרת איטליה A110/180XM – ללא רקורדים

₪2,099.00

קישור לדף מוצר pdf

שלח הודעת ווטסאפ

ניתן להזמנה מראש

הדפסה

דמי משלוח:	₪39.00
זמן אספקה:	עד 6 ימי עסקים
יצרן:	DAB
דגם:	A110/180XM
מק״ט:	400015
ברקוד:	8019203972924
אחריות:	אחריות לשנה
מספר מכירה:	86138

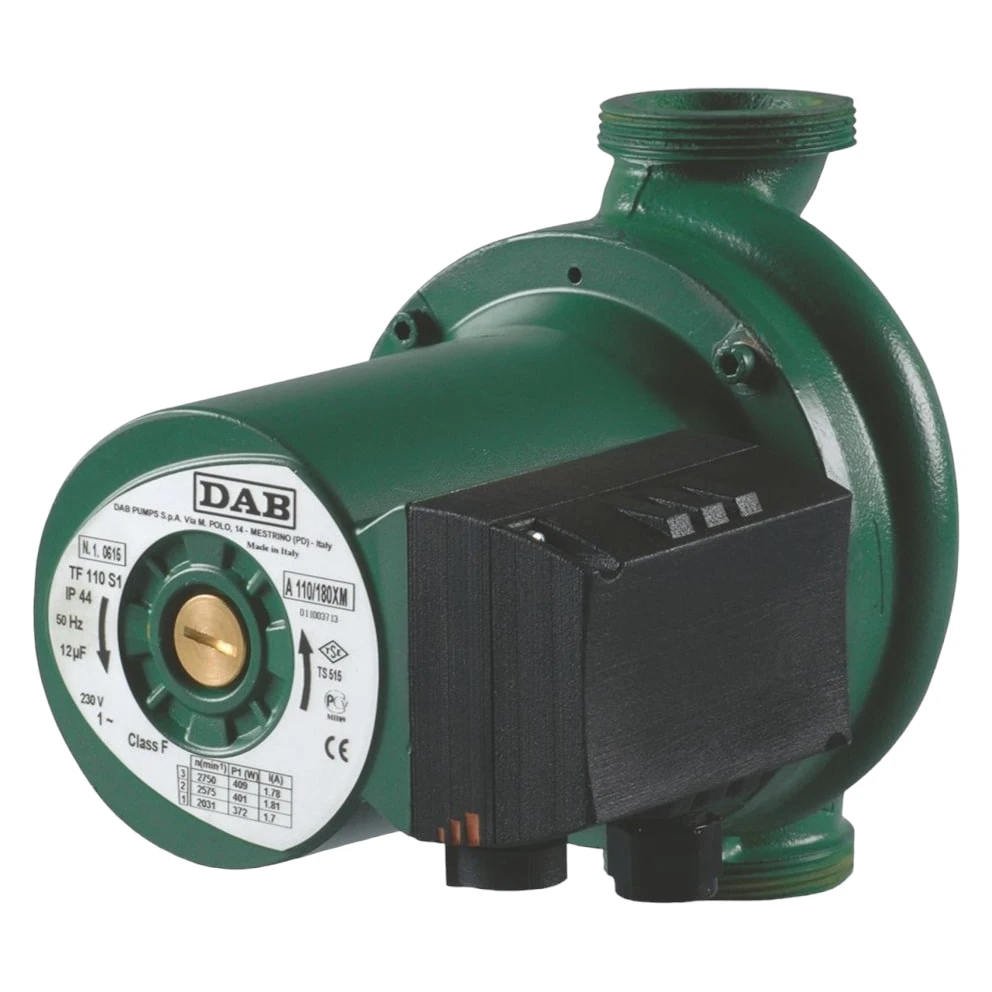

DAB A 110-180XM Pump for circulating hot water in closed and pressurised or open tank centralised home heating and air conditioning systems.
Without unions
2″ Pump couplings
Cast iron pump casing with aluminium die-cast motor casing. Technopolymer rotor, hardened stainless steel motor shaft mounted on graphite bushings that are lubricated by the pumped liquid.
Threaded ports with threaded connectors for control pressure gauges.
Stainless steel rotor, stator liners and closure flange.
Three-speed two-pole asynchronous motor with wet rotor.
Incorporated thermal cutout in the single-phase version. The twin version has an automatic clapet valve and blank flange.
– Operating range: from 1 to 13.2 m3/h with head up to 11.3 meters.B9
Liquid temperature range: from -10°C to + 110°C.
– Pumped liquid: clean, free of solids and mineral oils, non viscous, chemically neutral, similar to the characteristics of water (glycol max 30 %).
– Maximum operating pressure: 10 bar (1000 KPA).
– Protection class: IP 44
– Insulation class: F
– Cable-clip : PG 11
– Installation: with horizontal motor axle
Product in accordance with the EN-60335-2-51 European standard
