משאבת סחרור מים חמים חד פאזי אורך 180 מ”מ 95w-190w כולל רקורדים “½1 מקט 0323-63207

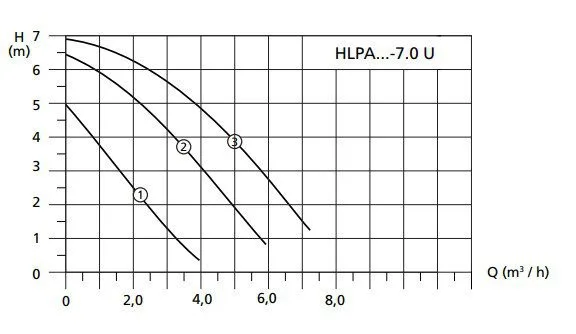

Hydraulic data
Maximum operating pressure PN 10 bar
Min. fluid temperature Tmin -20 °C
Max. fluid temperature Tmax 130 °C
Materials
Pump housing Cast iron
Impeller PP-LGF50
Shaft Stainless steel
Bearing Carbon-graphite
Motor data
Mains connection 1~230 V, 50 Hz
Rated current IN 0.93 A
Max. speed nmax 2600 1/min
Power consumption P1(Q=max.) of selected impeller * number of pumps P1 195 W
Interference emission EN 61000-6-3
Interference immunity EN 61000-6-2
Protection class motor IPX4D
Installation dimensions
Pipe connection on the suction side DNs G 1½
Port-to-port length L0 180 mm
