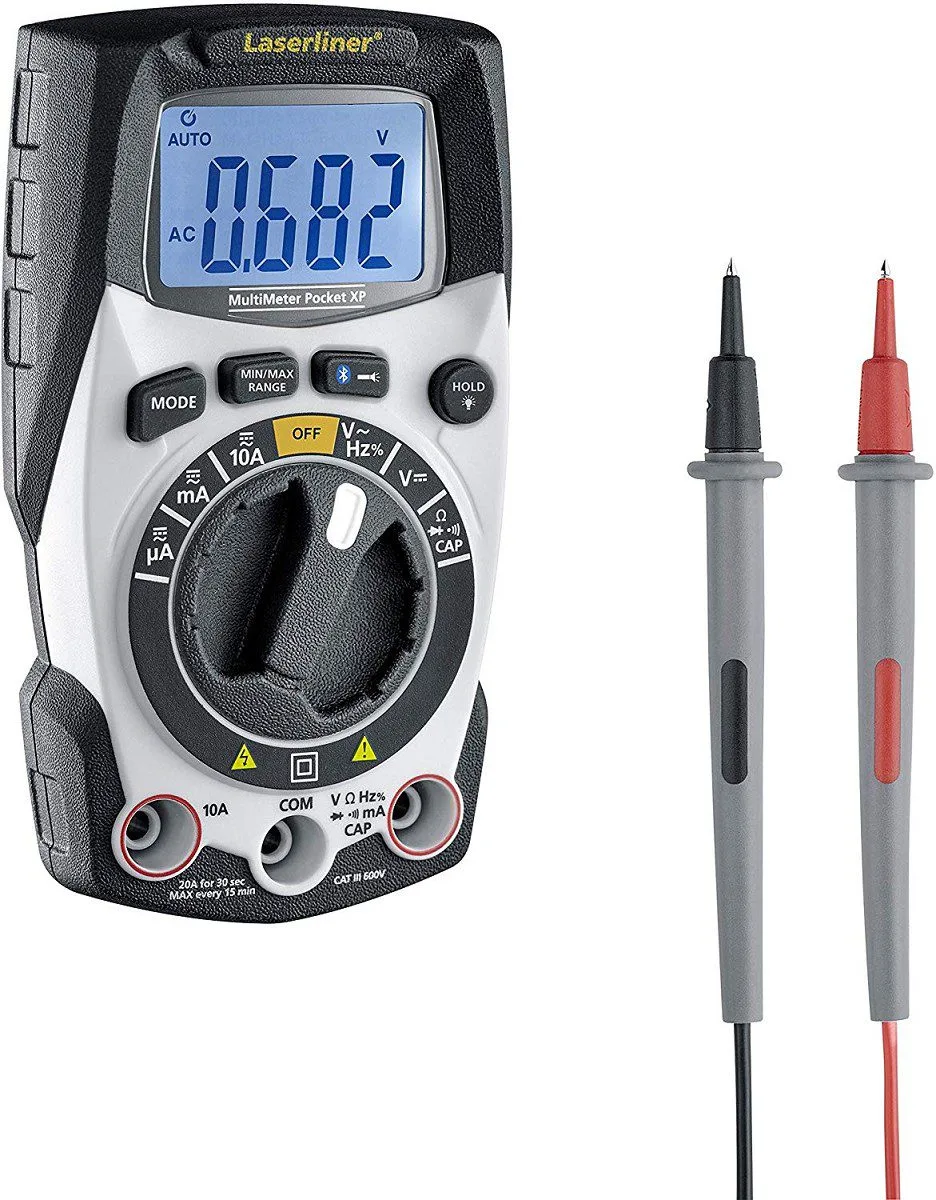

רב מודד מולטימטר לחשמלאים

₪449.00

שלח הודעת ווטסאפ

ניתן להזמנה מראש

דמי משלוח:	₪249.00
זמן אספקה:	עד 6 ימי עסקים
יצרן:	Laserliner
דגם:	083.036A
מק״ט:	Multimeter Pocket XP
ברקוד:	001010600001
מספר מכירה:	96924

Can be used for measurements throughout building installations

Can be used for measurements throughout building installations

Diode test function for determining integrity and polarity

Diode test function for determining integrity and polarity

Automatic continuity tester with acoustic signal

Automatic continuity tester with acoustic signal

Large backlit LCD display & rotary function knob

Large backlit LCD display & rotary function knob

Precise measurements of voltage, current,resistance, capacitance, frequency and duty factor
Diode test function for determining integrity and polarity
Automatic range changeover and manual range preselection
Automatic continuity tester with acoustic signal
High display resolution of 4000 counts for exact determination of all measured quantities
Large measurement bandwidth for frequency measurement from 10Hz to 10KHz
Data HOLD function
CAT III-600V, CAT IV-600V – can be used for measurements throughout building installations
Impact-proof, ergonomic housing with protective rubber coating and base stand

WEIGHT	262 g
DIMENSIONS	67 x 120 x 47 mm
STORAGE CONDITIONS	-20°C … 60°C, Max. humidity 80% rH
OPERATING CONDITIONS	Max. humidity 80% rH, no condensation up to 31°C, at higher levels linear derating up to 50% rH / ≤ 40°C, max. altitude 2000 m above sea level
FUSE	10A / 600V, flink (5 x 20 mm), 500mA / 600V flink (5 x 20 mm)
POWER SUPPLY	2 x AAA 1.5 Volt batteries
POLLUTION DEGREE	2
OVERVOLTAGE	CAT III – 600V, CAT IV – 600V
AUTO-POWER-OFF	15 min.
DISPLAY RESOLUTION	4000 counts
CONTINUITY TEST	Test current ≤ 0.5 mA Response threshold ≤ 50 Ohm
DUTY CYCLE	1% … 99% ±(1.2% + 2)
FREQUENCY	10Hz … 10kHz ±(1.0% + 5)
CAPACITANCE	40nF ±(5.0% + 35), 400nF/4/40μF ±(3.0% + 5), 400/4000μF ±(4.0% + 5), ±(5.0% + 5)
RESISTANCE	0.4kΩ ±(1.0% + 4), 4/40/400kΩ/4MΩ ±(1.5% + 2), 40MΩ ±(3.5% + 3)
OTHER	(protected up to 250V RMS/DC) DCA: 0.4mA ±(1.0% + 3), 4/40/400mA ±(1.5% + 3), 4/10A ±(2.5% + 5) ACA: 0.4mA ±(2.0% + 5), 4/40/400mA ±(2.5% + 5), 4/10A ±(3.0% + 7)
INPUTS / ACCURACIES	VOLT (protected up to 600V RMS/DC, impedance 10MΩ) DCV: 0.4V ±(1.0% + 8) 4/40/400V ±(1.0% + 3), 600V ±(1.2% + 3) ACV: 4/40/400V ±(1.0% + 5), 600V ±(1.2% + 5)
DIODE TEST	Test current/voltage ≤ 0.3 mA / ≤ 3.3 V
